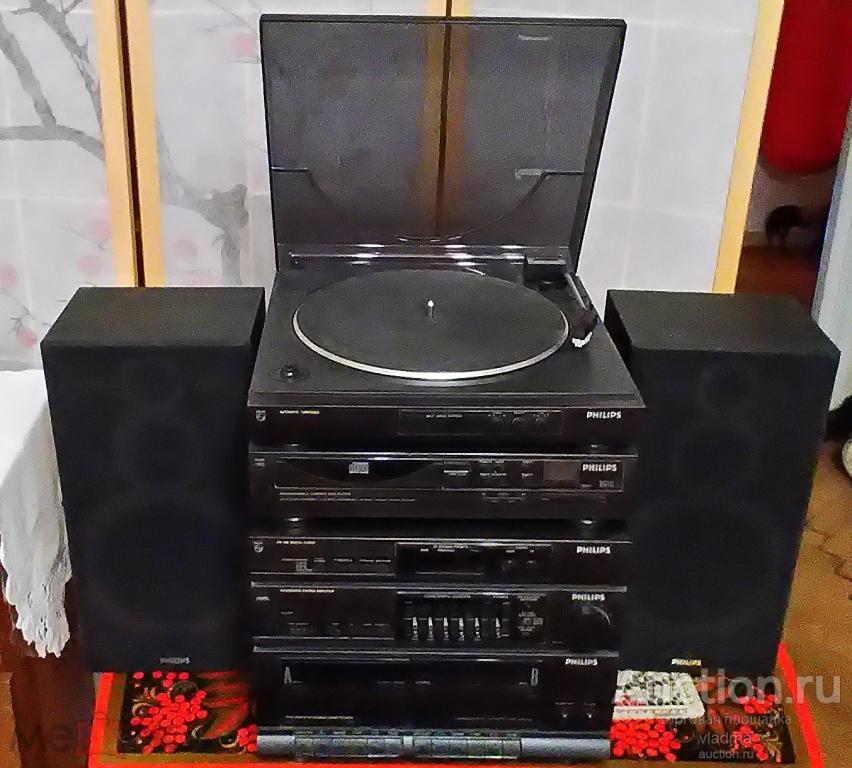

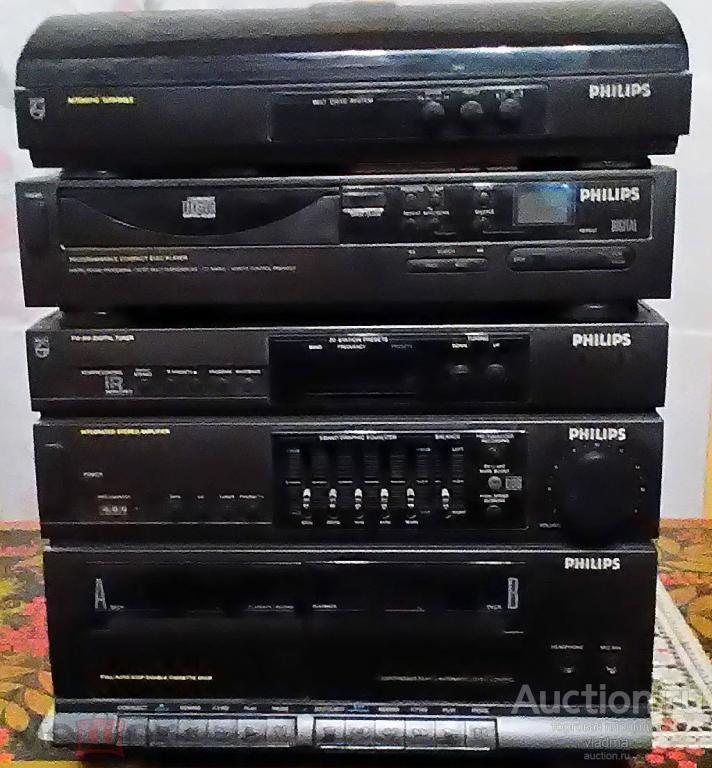

Музыкальный центр Philips F1395

СОСТАВ:

1. Проигрыватель виниловых пластинок
2. CD проигрыватель
3. Тюнер
4. Двойная кассетная дека с функцией беспрерывного проигрывания и ускоренного копирования
5. Акустические колонки

РАЗМЕР: 360x374x342 mm

ВЫХОДНАЯ МОЩНОСТЬ  40 W

Год выпуска 1986

Система практически не использовалась

GENERAL INFORMATION

. Midi music system

. Digital tuner with 20 random presets

- 7-Digital LCD display

. Automatic return record player with MD cartridge

. Double cassette deck

- High-speed dubbing

- Continuous play

- Microphone sound mix

. 2x 40W Music Power Amplifier

- 5-band graphic equalizer

- Motor-driven volume control

- Dynamic bass boost

- Pre-Equalized Recording

- Source indication in LCD

. Matching 2-way loudspeakers,

RECEPTION/TRANSMISSION

Tuning system : PLL Quartz, digital tuning

Wave range : FM: 87.5-108 MHz

MW: 522-1611 kHz

LW: 148-284 kHz

Aerial input : 75 ohm FM (coax)

. PLL Quartz digital tuning with easy programmable preset stations

. 20 Random presets

. Up/down automatic station search on all wave bands

. Up/down single step and fast manual tuning on all wave bands

. Non-volatile memory retains preset stations for one month on average

independent of power supply

. LCD display shows frequency, wave band, preset number, stereo and

correct tuning indications.

. Combined radio interference filter and mono/stereo switch

AUDIO TAPE DECK

Wow and flutter : 0.17% (WRMS)

Frequency range : 80-12,000 Hz

S/N ratio : 54 dB

System : Compact cassette, double deck

High quality double cassette deck.

Features high sound quality as well as Operating convenience and

optimised recording facilities:

. High sound quality

- Electronic tape speed control

- Longlife heads

. Operating convenience

- Continuous play facility

- Full autostop

- Tape counter

- Hydraulic cassette eject

. Optimised recording facilities

- Dubbing and high-speed dubbing with indication in LCD

- Automatic recording level control

- Sound mixing facility with microphone

RECORD PLAYER

Wow and Flutter : 0.19%

Frequency range : 20-20,000 Hz

Pick up lift : Lever

Player system : Automatic return, MD-cartridge,

DC motor

Rumble : -49 dB (DIN B)

. 2-speed player with automatic return.

. Belt-drive system with electronic motor control

. Damped tone arm lift

. MD pick-up element

. Friction hinged dust cover

LOUDSPEAKER BOX

Frequency range : 40-20,000 Hz

Music power : 40 W

Speaker : Woofer: 13 cm

Tweeter: piezo type

Speaker system : 2-way, bass reflex port

System impedance : 8 ohm

. 2-way loudspeaker system

. 20W music power handling capacity

. High-efficiency 13 cm woofer and piezo type tweeter

. Bass-reflex design with tuned port for optimum bass response

AUDIO/SOUND

Frequency equalizer : ñ 10 dB at

63, 250, 1000, 4000 and 16000 Hz

Frequency range : 50-20,000 Hz

Output power : 2x20 W cont. sine wave

2x 40 W music power

(1 kHz, ñ 1 dB, D ó 10%, 4 ohm load)

Signal to noise ratio : 75 dB

Stereo separation : 40 dB (1 kHz)

Bass Boost : For volume ó -20 dB,

at 63 Hz: +8 dB,

at 250 Hz: +5 dB

. Output power 80 W total music power

. 5-band graphic equalizer

. Pre-equalized recording with LED indication

. Dynamic bass boost emphasises bass as volume is turned down; LED

indicator shows that bass boost circuit is operative

. Motor driven volume control, remotely operated

. Stereo balance slide control

. Separate source selector switches with indication in LCD

. Power-on indication by means of LCD display

OPERATION/CONTROLS

Remote Control : . RC-5 system

. 9 function keys

. Volume control up/down

. Audio mute, with indication in LCD

. Remote function indication in LCD

CONNECTIONS

Inputs : Phono (MD) : 2.5 mV (47 k ohm)

Compact Disc 250 mV (47 k ohm)

TV/aux : 250 mV (47 k ohm)

Microphone : 2 mV (1.5 k ohm)

Outputs : Loudspeakers: 2x 4 ohm

Headphone : 350 mV (8 ohm)

RC5 remote : cinch out

. Front-panel headphone and microphone sockets

. Extra inputs for CD, VCR or TV (auxiliary)

MISCELLANEOUS

Dimensions (wxhxd) : 360x374x342 mm

Power supply : 220 V AC mains, 50/60 Hz
